Digidesign Profile 48ch Mixing Console Package

used price inc gst $A 33000.00

Digidesign Profile Mixrack
Digital Mixing System

Comprising
- PROFILE 24-fader control surface
- MIXRACK mix engine & audio interface

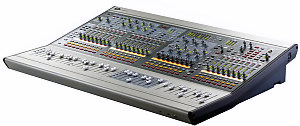

Digidesign Profile™
Mixing Console

24-fader control surface
Dedicated encoders for EQ, dynamics and plug-ins
8x output faders, 8x rotary output encoders, provide control of group masters, aux masters or plug-ins
Dual redundant field-replaceable PSU
Dimensions WxHxD 1150x169x790mm
Weight 40.8kg

Digidesign MIXRACK
CPU and Connectivity for VENUE D-Show® or Profile™ consoles

2x DSP Mix Engine DSP card
Embedded Windows XPe host computer
3x AI16 analog input cards provide 48x recallable analog XLR mic/line inputs
1x AO16 16 XLR analog output card
1x IO 8x analog TRS line I/O, 2-track analog AES & S/PDIF I/O, MIDI I/O, word clock I/O
1x ECx ethernet port connects to computer running remote application software
Dual redundant field-replaceable PSU
Options include
- DSP Mix Engine card up to maximum of 3
- FWx FireWire card provides 18 channels of Pro Tools LE® recording/playback
- HDx card provides 64 channels @ 24-bit/48kHz~computer with Pro Tools|HD Core/Accel cards and software installed
- XO16 8 XLR analog line outputs & 4 XLR stereo digital AES outputs
Dimensions WxHxD 482x489x457mm
Weight 45.4kg
