TANNOY QFLEX40 Line Array Powered Loudspeaker

price inc gst $A 23399.00

Tannoy Q-Flex 40
Steerable Line Array Loudspeaker

8x 4" drivers
16x 3" drivers
16x 1" HF drivers
Steerable elevation angle ±70°
LF beam control limit 250Hz
Horizontal dispersion 120°
Vertical dispersion 5~100°
Power capacity 40x 100w amplifiers
Frequency response 110Hz~20kHz
Max continuous SPL 130dB@1m
Dimensions 2127x172x150mm
Weight 38.5Kg

data sheet

user manual

↖

TANNOY QFLEX32 Line Array Powered Loudspeaker

price inc gst $A 16599.00

Tannoy Q-Flex 32
Steerable Line Array Loudspeaker

16x 4" drivers
16x 3" drivers
Steerable elevation angle ±70°
LF beam control limit 400Hz
Horizontal dispersion 120°
Vertical dispersion 5~100°
Power capacity 32x 100w amplifiers
Frequency response 130Hz~20kHz
Max continuous SPL 130dB@1m
Dimensions 1387x172x150mm
Weight 25.25Kg

data sheet

user manual

↖

TANNOY QFLEX24 Line Array Powered Loudspeaker

price inc gst $A 14299.00

Tannoy Q-Flex 24
Steerable Line Array Loudspeaker

8x 4" drivers
8x 3" drivers
8x 1" HF drivers
Steerable elevation angle ±70°
LF beam control limit 400Hz
Horizontal dispersion 120°
Vertical dispersion 10~100°
Power capacity 24x 100w amplifiers
Frequency response 110Hz~20kHz
Max continuous SPL 126dB@1m
Dimensions 1483x172x150mm
Weight 26.25Kg

data sheet

user manual

↖

TANNOY QFLEX16 Line Array Powered Loudspeaker

price inc gst $A 8199.00

Tannoy Q-Flex 16
Steerable Line Array Loudspeaker

8x 3" drivers
8x 1" HF drivers
Steerable elevation angle ±70°
LF beam control limit 700Hz
Horizontal dispersion 120°
Vertical dispersion 10~100°
Power capacity 16x 100w amplifiers
Frequency response 130Hz~20kHz
Max continuous SPL 124dB@1m
Dimensions 744x172x150mm
Weight 14.25Kg

data sheet

user manual

↖

TANNOY VX12Q 12" Dual Concentric Loudspeaker

price inc gst $A 1699.00

Tannoy VX12Q
2-way Loudspeaker

12" dual concentric driver
Frequency response 80Hz~25kHz ±3db
Dispersion 75°x40° rotatable
Sensitivity 97dB 1w/1m
Power capacity 350w continuous 1400w peak
Maximum SPL 123db @1m average 129db @1m peak
Colour black also available in white
Dimensions WxHxD 371x481x361mm
Weight 17kg

data sheet

user manual

↖

TANNOY VX8 8" Dual Concentric loudspeaker (pr)

price inc gst $A 1496.00

Tannoy VX8
2-way Loudspeaker (pr)

8" dual concentric driver
Frequency response 85Hz~35kHz ±3db
Dispersion 90° conical
Sensitivity 92dB 1w/1m
Power capacity 130w continuous 520w peak
Maximum SPL 125db @1m average 131db @1m peak
Dimensions WxHxD 280x388x275mm
Weight 8.5kg

data sheet

user manual

↖

TANNOY VX80WH 8" Dual Concentric loudspeaker (pr)

price inc gst $A 1496.00

Tannoy VX8WH
2-way Loudspeaker (pr)

8" dual concentric driver
Frequency response 85Hz~35kHz ±3db
Dispersion 90° conical
Sensitivity 92dB 1w/1m
Power capacity 130w continuous 520w peak
Maximum SPL 125db @1m average 131db @1m peak
Dimensions WxHxD 280x388x275mm
Weight 8.5kg

data sheet

user manual

↖

TANNOY VX8.2 Loudspeaker

price inc gst $A 1399.00

Tannoy VX8.2
2-way Loudspeaker

1x 8" dual concentric driver
1x 8" bass driver
Frequency response 80Hz~35kHz ±3db
Dispersion 90° conical
Sensitivity 93dB 1w/1m
Power capacity 200w continuous 800w peak
Maximum SPL 116db @1m average 122db @1m peak
Dimensions WxHxD 280x590x275mm
Weight 15.5kg

data sheet

user manual

↖

TANNOY AMS6DC 6" Coaxial Loudspeaker (pr)

price inc gst $A 1199.00

Tannoy AMS6DC
Coaxial Loudspeaker

6½" LF & concentric 25mm dome HF driver
Frequency response 75Hz~30kHz ±3db
Dispersion 90°x90°
Sensitivity 89dB/w/m
Power capacity 80w RMS 320w program
Maximum SPL 114dB/1m peak
Transformer 60w 100v/70v
Weatherproof rating IP65
Included yoke bracket
Dimensions WxHxD 230x361x224mm
Dimensions with bracket WxHxD 230x365x269mm
Weight 6.25kg

data sheet

user manual

↖

TANNOY AMS6DCWH 6" Coaxial Loudspeaker (pr)

price inc gst $A 1199.00

Tannoy AMS6DCWH
Coaxial Loudspeaker

6½" LF & concentric 25mm dome HF driver
Frequency response 75Hz~30kHz ±3db
Dispersion 90°x90°
Sensitivity 89dB/w/m
Power capacity 80w RMS 320w program
Maximum SPL 114dB/1m peak
Transformer 60w 100v/70v
Weatherproof rating IP65
Included yoke bracket
Dimensions WxHxD 230x361x224mm
Dimensions with bracket WxHxD 230x365x269mm
Weight 6.25kg

data sheet

user manual

↖

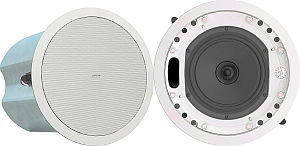

TANNOY CMS603DC 6.5" Ceiling Loudspeaker (pr)

price inc gst $A 999.00

Tannoy CMS603DC
Dual Concentric Ceiling Loudspeaker

6.5" LF & 20mm dome HF driver
Frequency response 75Hz~22kHz ±3db
Dispersion 90°x90°
Sensitivity 91dB @1w/1m
Power capacity 60w RMS 240w program
Maximum SPL 113dB/1m peak
Transformer 30w 100v/70v
Hole cutout diameter 253.0mm
Dimensions WxHxD 274Øx99mm
Weight 3.3kg

data sheet

user manual

↖

TANNOY CVS8BK 8" Ceiling Loudspeaker (pr)

price inc gst $A 999.00

Tannoy CVS8 BK
Dual Concentric Ceiling Loudspeaker

1x 8" LF cone
1x 19mm soft dome HF driver
Frequency response 79Hz~21kHz ±3db
Dispersion 84° conical 1kHz~6kHz
Sensitivity 93dB @1w/1m
Power capacity 60w continuous 240w peak
Maximum SPL 111db continuous 117dB/1m peak
Transformer 60w 100v/70v & 8Ω
Hole cutout diameter 320.0mm
Dimensions WxDxH 356Øx275mm
Weight 6.6kg

data sheet

user manual

↖

TANNOY DVS8T 8" 2-way Coaxial Loudspeaker (pr)

price inc gst $A 999.00

Tannoy DVS8T
2-way Loudspeaker

8" LF driver
¾" soft dome neodymium coaxial HF driver
Frequency response 75Hz~20kHz ±3db
Dispersion 80° conical
Sensitivity 90dB 1w/1m
Power capacity 70w continuous 280w peak
Maximum SPL 108dB@1m continuous 114dB@1m peak
Transformer 60w@ 70V/100V
Environmental rating IP64
Dimensions WxHxD 290x452x296mm
Weight 7kg

data sheet

user manual

↖

TANNOY DVS8TWH 8" 2-way Coaxial Loudspeaker (pr)

price inc gst $A 999.00

Tannoy DVS8TWH
2-way Loudspeaker

8" LF driver
¾" soft dome neodymium coaxial HF driver
Frequency response 75Hz~20kHz ±3db
Dispersion 80° conical
Sensitivity 90dB 1w/1m
Power capacity 70w continuous 280w peak
Maximum SPL 108dB@1m continuous 114dB@1m peak
Transformer 60w@ 70V/100V
Environmental rating IP64
Dimensions WxHxD 290x452x296mm
Weight 7kg

data sheet

user manual

↖

TANNOY CMS503DCLP 5" Ceiling Loudspeaker (pr)

price inc gst $A 899.00

Tannoy CMS503DC
Dual Concentric Ceiling Loudspeaker

5" LF & 20mm dome HF driver
Frequency response 88Hz~22kHz ±3db
Dispersion 90°x90°
Sensitivity 89dB @1w/1m
Power capacity 60w RMS 240w program
Maximum SPL 113dB/1m peak
Transformer 30w 100v/70v
Hole cutout diameter 253.0mm
Dimensions WxHxD 274Øx99mm
Weight 3.3kg

data sheet

user manual

↖

TANNOY AMS5DC 5" Coaxial Loudspeaker (pr)

price inc gst $A 849.00

Tannoy AMS5DC
Coaxial Loudspeaker

5" LF & concentric 20mm dome HF driver
Frequency response 90Hz~30kHz ±3db
Dispersion 90°x90°
Sensitivity 87dB/w/m
Power capacity 60w RMS 240w program
Maximum SPL 111dB/1m peak
Transformer 30w 100v/70v
Weatherproof rating IP65
Included yoke bracket
Dimensions WxHxD 155x240x160mm
Dimensions with bracket WxHxD 155x248x204mm
Weight 3.6kg

data sheet

user manual

↖

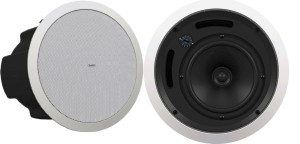

TANNOY CVS6 6" Ceiling Loudspeaker (pr)

price inc gst $A 799.00

Tannoy CVS6
Dual Concentric Ceiling Loudspeaker

1x 6" LF cone
1x 19mm soft dome HF driver
Frequency response 79Hz~21kHz ±3db
Dispersion 93° conical 1kHz~6kHz
Sensitivity 91dB @1w/1m
Power capacity 60w continuous 240w peak
Maximum SPL 109db continuous 115dB/1m peak
Transformer 60w 100v/70v & 8Ω
Hole cutout diameter 250.0mm
Dimensions WxDxH 280Øx265mm
Weight 5.7kg

data sheet

user manual

↖

TANNOY DVS6T 6" 2-way Coaxial Loudspeaker (pr)

price inc gst $A 799.00

Tannoy DVS6T
2-way Loudspeaker

6" LF driver
¾" soft dome neodymium coaxial HF driver
Frequency response 80Hz~20kHz ±3db
Dispersion 90° conical
Sensitivity 88dB 1w/1m
Power capacity 60w continuous 240w peak
Maximum SPL 105dB@1m continuous 111dB@1m peak
Transformer 60w@ 70V/100V
Environmental rating IP64
Dimensions WxHxD 216x341x217mm
Weight 4.8kg

data sheet

user manual

↖

TANNOY DVS6TWH 6" 2-way Coaxial Loudspeaker (pr)

price inc gst $A 799.00

Tannoy DVS6TWH
2-way Loudspeaker

6" LF driver
¾" soft dome neodymium coaxial HF driver
Frequency response 80Hz~20kHz ±3db
Dispersion 90° conical
Sensitivity 88dB 1w/1m
Power capacity 60w continuous 240w peak
Maximum SPL 105dB@1m continuous 111dB@1m peak
Transformer 60w@ 70V/100V
Environmental rating IP64
Dimensions WxHxD 216x341x217mm
Weight 4.8kg

data sheet

user manual

↖

Tannoy CMS1201DC 12" Ceiling Coaxial Loudspeaker

price inc gst $A 719.00

Tannoy CMS1201DC
Dual Concentric Ceiling Loudspeaker Kit

12" LF driver
34mm aluminium dome neodymium HF driver
Frequency response 60Hz~20kHz ±3db
Dispersion 1kHz~16kHz 90°x90°
Sensitivity 97dB @1w/1m
Power capacity 200w RMS 800w program
Maximum SPL 126dB/1m peak
Transformer 60w 100v/70v
Dimensions WxHxD 725x331x516mm
The CMS1201 DC Kit comprises three components ordered separately under different part numbers
- Dual concentric loudspeaker mounted on ported steel baffle with crossover and line transformer
- Steel back-can with multiple mounting points
- Grille assembly with moulded bevel cover

data sheet

user manual

↖

Tannoy CMS1201SW 12" Ceiling Bass Loudspeaker

price inc gst $A 719.00

Tannoy CMS1201SW
Bass Ceiling Loudspeaker

12" LF driver with 3" voicecoil
Frequency response 34Hz~1kHz ±3db
Sensitivity 93dB @1w/1m
Power capacity 400w RMS 800w program
Maximum SPL 126dB/1m peak
Dimensions with backcan WxHxD 725x331x516mm
Weight 6.9kg

data sheet

user manual

↖

Tannoy CMS1201SW Ceiling loudspeaker Enclosure

price inc gst $A 719.00

Tannoy CMS1201SWBACKCAN
Loudspeaker Enclosure

Enclosure designed for pre-installation of CMS1201SW bass loudspeaker
Acoustically enhanced zinc plated steel back can internally dampened 79 litre capacity provides low frequency performance
Phoenix connectors for input and link output.
Suspension options include
- Steel mounting lugs for fitting to Unistrut roof rail system
- Suspension via 4 top-mounted eye bolts
- Single point suspension M10 or 3/8" UNC threaded rod

data sheet

user manual

↖

TANNOY OCV8WH 8" Pendant Loudspeaker

price inc gst $A 689.00

Tannoy OCV8-WH
Pendant Loudspeaker

120mm LF driver
25mm coaxial HF driver
Frequency response 75Hz~20kHz ±3db
Horizontal dispersion 90° conical @2kHz
Sensitivity 87db/w/m @100Hz~10kHz
Power capacity 70w continuous
Maximum SPL 108db/w/m continuous 114db/w/m peak
Switchable 8Ω 70V & 100V
Dimensions WxDxH 302Øx493mm
Weight 8.2kg

data sheet

user manual

↖

TANNOY OCV6WH 6" Pendant Loudspeaker

price inc gst $A 599.00

Tannoy OCV6-WH
Pendant Loudspeaker

150mm LF driver
20mm coaxial HF driver
Frequency response 80Hz~20kHz ±3db
Horizontal dispersion 90° conical @2kHz
Sensitivity 87db/w/m @100Hz~10kHz
Power capacity 60w continuous
Maximum SPL 105db/w/m continuous 111db/w/m peak
Switchable 8Ω 70V & 100V
Dimensions WxDxH 260Øx424mm
Weight 5.8kg

data sheet

user manual

↖

TANNOY CSV601 6" Ceiling Loudspeaker (pr)

price inc gst $A 569.00

Tannoy CVS601
Dual Concentric Ceiling Loudspeaker

1x 6½" LF cone
1x 20mm soft dome HF driver
Frequency response 105Hz~20kHz ±3db
Dispersion 115° conical
Sensitivity 90dB @1w/1m
Power capacity 50w continuous 200w peak
Maximum SPL 107db continuous 113dB/1m peak
Transformer 30w 100v/70v & 8Ω
Hole cutout diameter 222.0mm
Dimensions WxDxH 254Øx249mm
Weight 3.8kg

data sheet

user manual

↖

TANNOY CVS401 4" Ceiling Loudspeaker (pr)

price inc gst $A 399.00

Tannoy CVS401
Dual Concentric Ceiling Loudspeaker

1x 4" LF cone
1x 20mm soft dome HF driver
Frequency response 102Hz~20kHz ±3db
Dispersion 120° conical
Sensitivity 84dB @1w/1m
Power capacity 30w continuous 120w peak
Maximum SPL 99db continuous 105dB/1m peak
Transformer 25w 100v/70v & 8Ω
Hole cutout diameter 172.0mm
Dimensions WxDxH 200Øx189mm
Weight 2.8kg

data sheet

user manual

↖

Tannoy CMS1201DC Loudspeaker Grille Assembly

price inc gst $A 149.00

Tannoy CMS1201DCGRILLE
Loudspeaker Grille Assembly

Grille assembly for CMS1201SWBACKCAN loudspeaker enclosure
Snap-fit powder coated perforated steel mesh grille
Dust protection and UV resistance
ABS moulded surround secured may be custom painted

data sheet

user manual

↖

TANNOY 79000385 Diaphragm for i8

Tannoy 79000385
Diaphragm

¾" dome diaphragm
Designed for Tannoy i8
Frequency response 1.7~20kHz
Sensitivity 92dB 1w/1m
Power capacity 130w continuous

data sheet

user manual

↖

TANNOY 79000610 Diaphragm for LSUHF158

Tannoy 79000610
Diaphragm Type 0278

2" aluminium dome diaphragm 8Ω
Frequency response 1kHz~20kHz
Sensitivity 92dB 1w/1m
Power capacity 50w
HF diaphragm for Tannoy LSU/HF/15/8 driver for Monitor Gold loudspeaker

data sheet

review

↖

TANNOY B475 18" Bass loudspeaker

Tannoy B475
18" Bass Loudspeaker

Frequency response 28~240Hz ±3db
Sensitivity 98dB 1w/1m
Power capacity 400w RMS 800w peak
Maximum SPL 123db/m continuous 129db/m peak
Dimensions WxHxD 555x576x650mm
Weight 40kg

data sheet

user manual

↖

TANNOY DC12I 12" Dual concentric loudspeakr

Tannoy DC12i
2-way Loudspeaker

12" LF ¾" HF dual concentric driver
Frequency response 50Hz~35kHz
Dispersion 90° conical
Power capacity 200w continuous
Sensitivity 97dB 1w/1m
Maximum SPL 126dB@1m peak
Dimensions WxHxD 410x550x255mm
Weight 20kg

data sheet

user manual

↖

TANNOY DC8I 8" Dual concentric loudspeaker

Tannoy DC8i
2-way Loudspeaker

8" LF ¾" HF dual concentric driver
Frequency response 62Hz~45kHz
Dispersion 90° conical
Power capacity 130w continuous
Sensitivity 92dB 1w/1m
Maximum SPL 119dB@1m peak
Dimensions WxHxD 294x394x215mm
Weight 9.5kg

data sheet

user manual

↖

TANNOY I12 12" Dual Concentric Loudspeaker

Tannoy i12
2-way Loudspeaker

12" dual concentric driver
Frequency response 70Hz~25kHz ±3db
Dispersion 60° conical
Sensitivity 97dB 1w/1m
Power capacity 200w continuous 800w peak
Maximum SPL 120db/m continuous 126db/m peak
Dimensions WxHxD 370x486x385mm
Weight 20kg

data sheet

user manual

↖

TANNOY I8 8" Dual concentric loudspeaker

Tannoy i8
2-way Loudspeaker

8" dual concentric driver
Frequency response 65Hz~20kHz
Dispersion 90° conical
Sensitivity 92dB 1w/1m
Power capacity 130w continuous
Dimensions WxHxD 280x388x280mm
Weight 8.2kg

data sheet

user manual

↖

Tannoy LSUHF158 15" Coaxial Driver

Tannoy LSU/HF/15/8
Dual Concentric Driver for Monitor Gold 15

15" LF driver with 2" copper voice coil
2" HF aluminium dome diaphragm 8Ω
Frequency response 32Hz~20kHz
Dispersion 60° @10kHz
Sensitivity 92dB 1w/1m
Power capacity 50w
Dimensions WxHxD 387Øx229mm
Weight 9.3kg

data sheet

review

↖

Tannoy LSUHF15L 15" Coaxial Driver

Tannoy LSU/HF/15/L
Dual Concentric Driver for Monitor Red 15

15" LF driver with 2" copper voice coil
2" HF aluminium dome diaphragm 16Ω
Frequency response 32Hz~20kHz
Dispersion 60° @10kHz
Sensitivity 92dB 1w/1m
Power capacity 50w
Dimensions WxHxD 387Øx229mm
Weight 9.3kg

data sheet

↖

TANNOY M2iw 6.5" in-wall Loudspeaker

Tannoy M2iw
6" in-wall Loudspeaker

6" LF driver 1" soft dome HF driver
Frequency response 65Hz~20kHz
Sensitivity 90dB 1w/1m
Power capacity 50w continuous 100w peak
Dimensions 385x260x69mm
Weight 2.75kg

data sheet

↖

TANNOY POWERV8B Powered 8" Dual Concentric Loudspeaker

Tannoy PowerV8
2-way Powered Loudspeaker

8" dual concentric driver
Frequency response 85Hz~22kHz
Dispersion 90° conical
Sensitivity 92dB 1w/1m
Power capacity 130w continuous 520w peak
Dual housing serves as FOH or stage monitor
Weight 8.2kg

data sheet

user manual

↖

TANNOY PRECISION6D Studio monitors (pr)

Tannoy Precision 6D
Biamp 2-way Monitor

6" magnetically shielded dual concentric LF&HF transducer
1" neodymium titanium dome HF driver
Frequency response 59Hz~51kHz
HF dispersion 90°
Maximum peak SPL 116dB/1m
Bi-amplifier power LF 75w HF 35w
Dimensions WxHxD 220x356x356mm
Weight 13kg

data sheet

user manual

↖

TANNOY PRECISION8D Studio monitors (pr)

Tannoy Precision 8D
Biamp 2-way Monitor

8" magnetically shielded dual concentric LF&HF transducer
1" neodymium titanium dome HF driver
Frequency response 44Hz~51kHz
HF dispersion 90°
Maximum peak SPL 119dB/1m
Bi-amplifier power LF 150w HF 70w
Dimensions WxHxD 272x440x356mm
Weight 18kg

data sheet

user manual

↖

TANNOY QFLEX8 Line Array Powered Loudspeaker

Tannoy Q-Flex 8
Steerable Line Array Loudspeaker

8x 4" drivers
Steerable elevation angle ±70°
LF beam control limit 700Hz
Horizontal dispersion 120°
Vertical dispersion 10~100°
Power capacity 8x 100w amplifiers
Frequency response 110Hz~4kHz
Max continuous SPL 122dB@1m
Dimensions 744x172x150mm
Weight 15.25kg

data sheet

user manual

↖

TANNOY S8iw 8" in-wall Loudspeaker

Tannoy S8iw
8" In-wall Loudspeaker

8" dual concentric 2-way driver
Frequency response 47Hz~20kHz
Sensitivity 92dB 1w/1m
Power capacity 90w continuous 180w peak
Dimensions 385x260x86mm
Weight 4.0kg

data sheet

↖

TANNOY T12 12" Dual Concentric Loudspeaker

Tannoy T12
2-way Loudspeaker

12" dual concentric driver
Dual housing serves as FOH or stage monitor
Frequency response 70Hz~25kHz ±3db
Dispersion 60° conical
Sensitivity 97dB 1w/1m
Power capacity 200w continuous 800w peak
Maximum SPL 120db/m continuous 126db/m peak
Dimensions WxHxD 486x370x385mm
Weight 20kg

data sheet

user manual

↖

TANNOY T300 Full range loudspeaker

Tannoy T300
2-way Loudspeaker

12" dual concentric SuperDual driver
Frequency response 55Hz~22kHz
Dispersion 90° conical
Sensitivity 100dB 1w/1m
Power capacity 300w continuous 1200w peak
Halogen high frequency protection system
Dual housing serves as FOH or stage monitor
Dimensions WxHxD 370x590x385mm
Weight 35kg

data sheet

↖

TANNOY TX1 2-way Crossover with summed LF

Tannoy TX1
Loudspeaker Controller

2x3 analog audio processor
Switchable 100Hz 12db/octave high pass filter on stereo outputs
Level control, 100Hz 12db/octave low-pass filter and EQ on mono summed LF output
Dimensions WxHxD 482x45x150mm
Weight 1.7kg

data sheet

user manual

↖

Tannoy TX3 loudspeaker Controller

Tannoy TX3
Loudspeaker Controller

2x3 analog audio processor
Loudspeaker equalisation for T300 systems
Switchable 100Hz 12db/octave high pass filter on stereo outputs
Level control, 100Hz 12db/octave low-pass filter and EQ on mono summed LF output
Dimensions WxHxD 482x45x150mm
Weight 1.7kg
